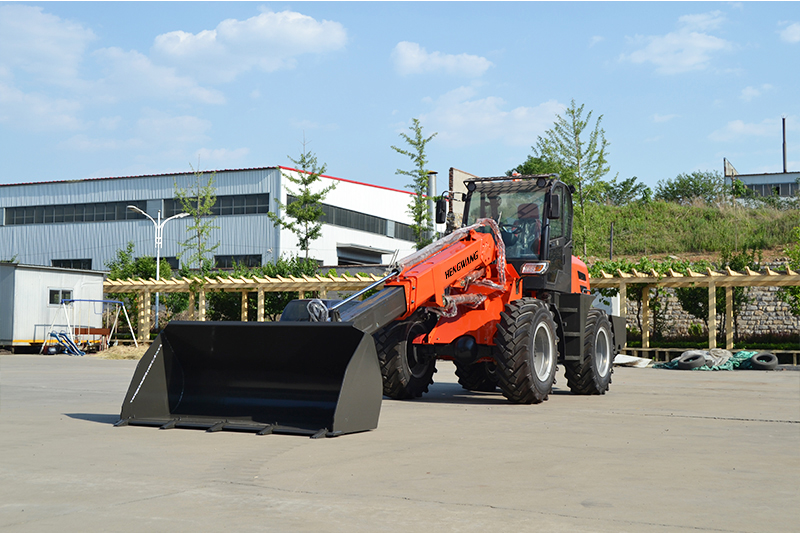

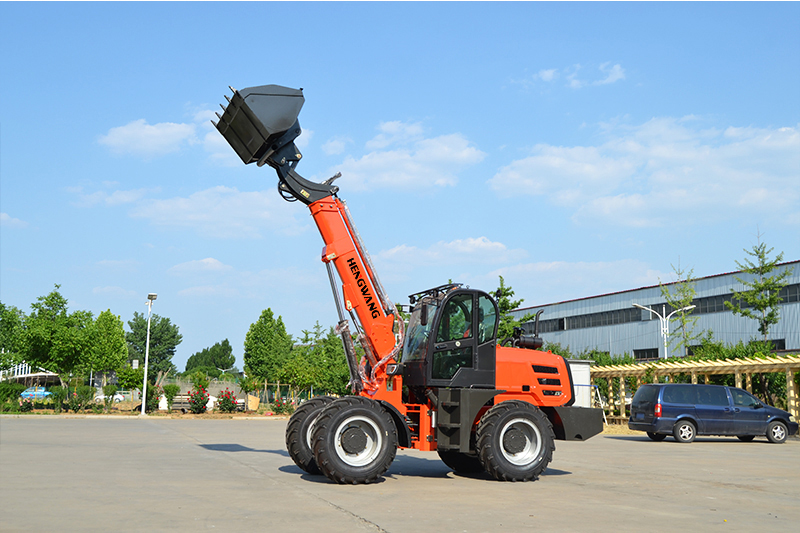

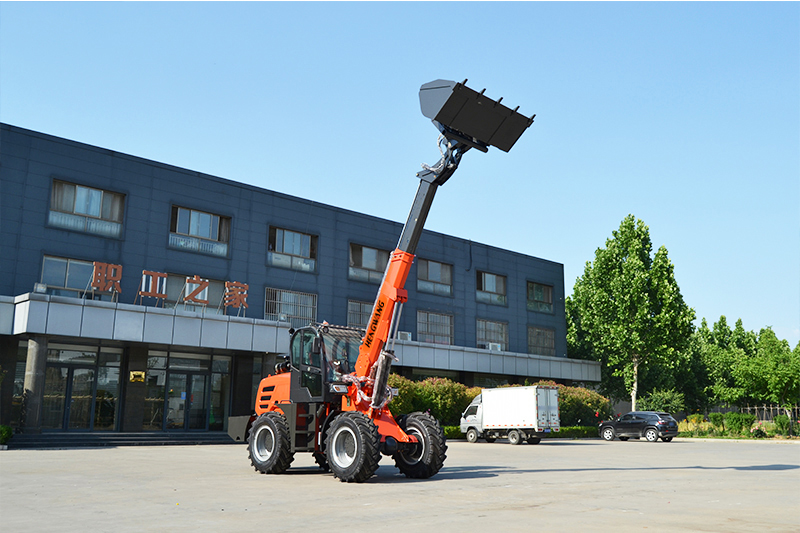

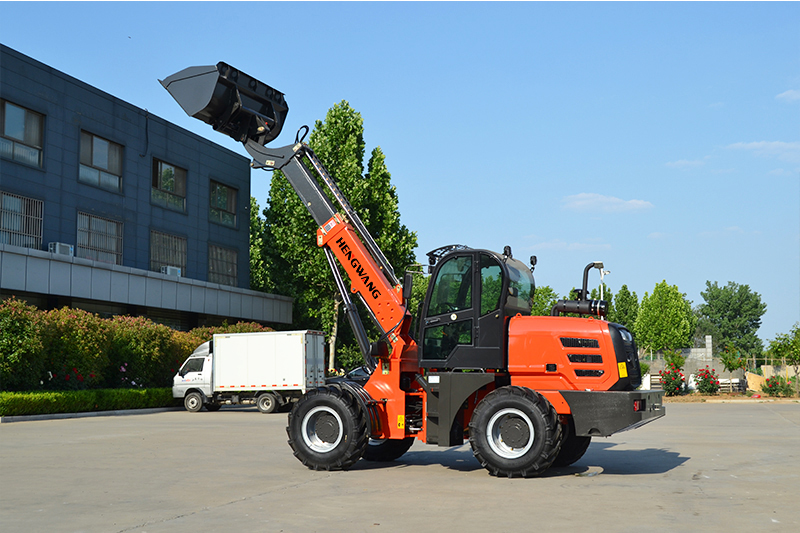

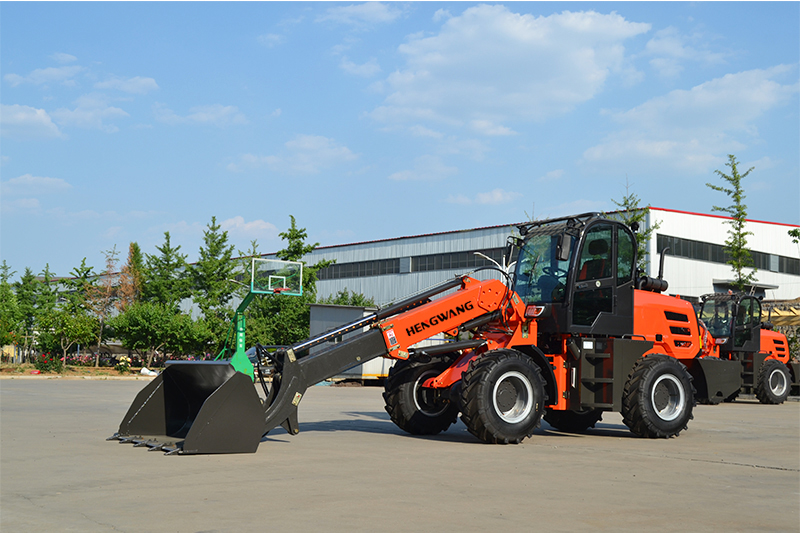

HW2500 Telescopic Loader
Rated Load: 2500Kg
Bucket Capacity: 1.2m³
Rated Power: 55.8Kw
Bucket Capacity: 1.2m³
Rated Power: 55.8Kw
1. Equipped with Xinchai Euro5 engine, optional Yanmar engine/Yunnei 76kw engine.
2. According to clients request, customize higher dumping and longer arm products.
3. Strong and durable frame, have the automatic flat function in high place.
4. (Quick change )option attachment:wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc.
5. Optional air conditioner, back camera, more comfortable for driving.
6. High pressure and safer air assist disc brake braking system.
| HW2500 | |
| 1.Main technical specification | |
| Bucket Capacity(m³) | 1.2 |
| Operating Weight(kg) | 6700 |
| Bucket Width(mm) | 2100 |
| Bucket type | Heavy-duty bolt on teeth |
| Rated Load(kg) | 2500kg (including attachment or bucket) |
| Wheel base(mm) | 2650 |
| Track(mm) | 1600 |
| Driving Mode | Hydraulic converter, four wheel drive |
| Overall Dimensions(mm) | 6800x2050x2900 |
| Max. Lifting Height(mm) | 5500 |
| 2.Engine Details | |
| Model | Xinchai Euro5 engine |
| Engine Type | In-line arrangement, water-cooled, four-cylinder diesel,engine |
| Rated Power(kw) | 55.8 |
| Rated Speed (rpm) | 2400r/p.min |
| Optional Engine | YANMAR/ YUNNEI(76kw) |
| 3.Transmission System | |
| Hydraulic converter + gearbox+drive shaft + hub reduction axles | |
| 4.Operating Specifications | |
| Steering System | Articulated Frame with hydraulic power steering |
| Driving System | Hydraulic converter, four wheel drive |
| European quick coupling system | |
| Hydraulic joystick control | |
| 5.Brake System | |
| Service Brake | Safer air assist disc brake braking system |
| Parking Brake | Hand operated(Disc brakes) |
| 6.Tire | |
| Model: | 16/70-24 |
| Width(mm) | 410 |
| Diameter(mm) | 1075 |
