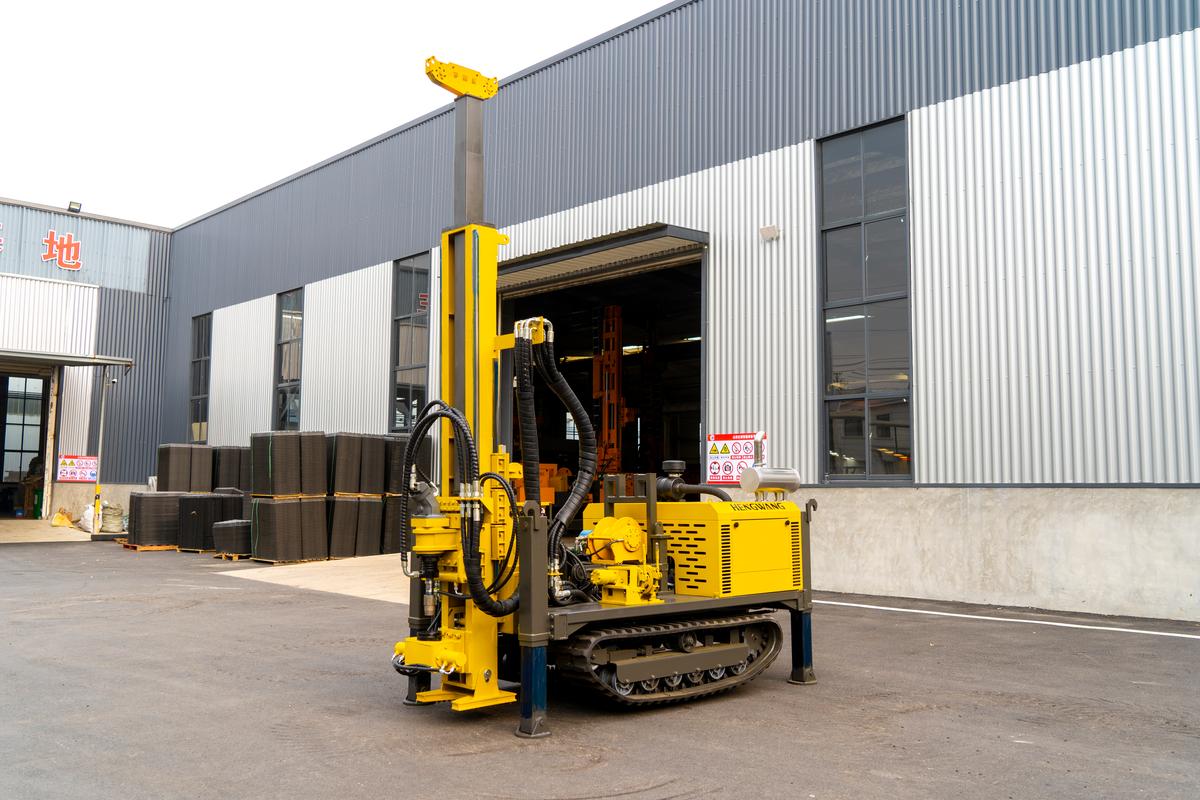

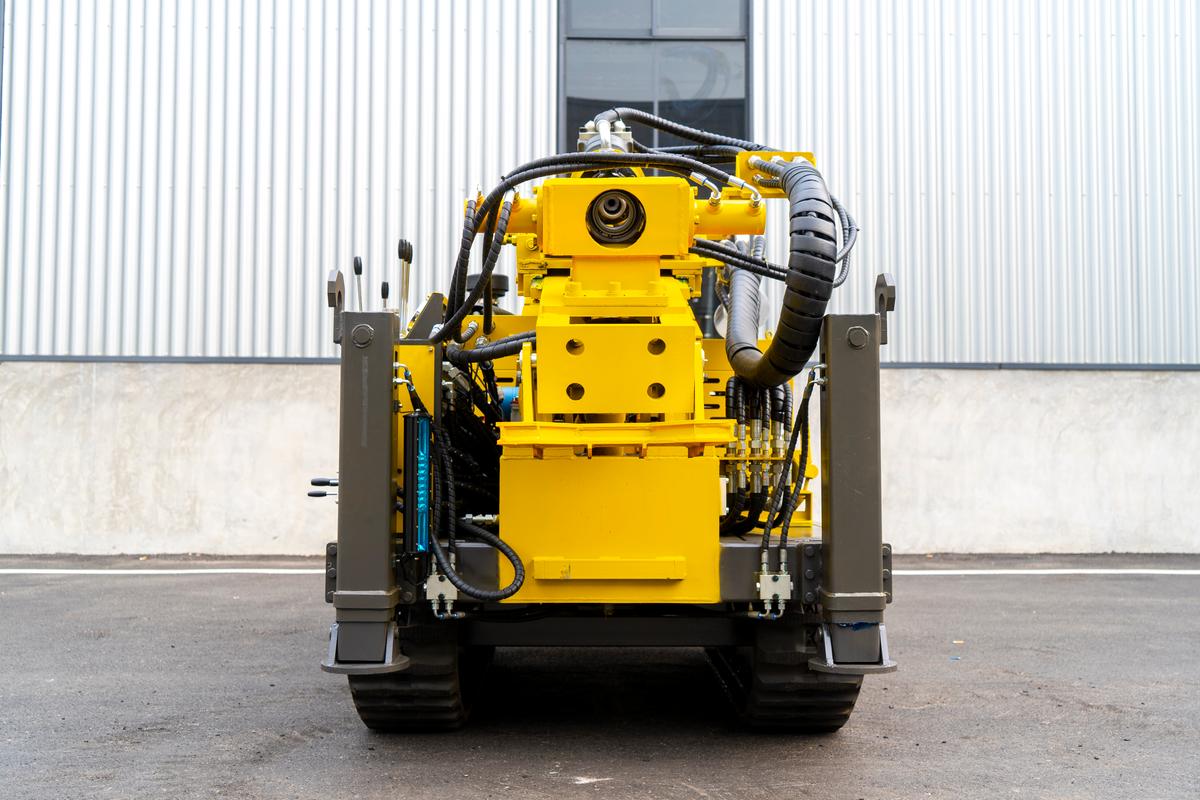

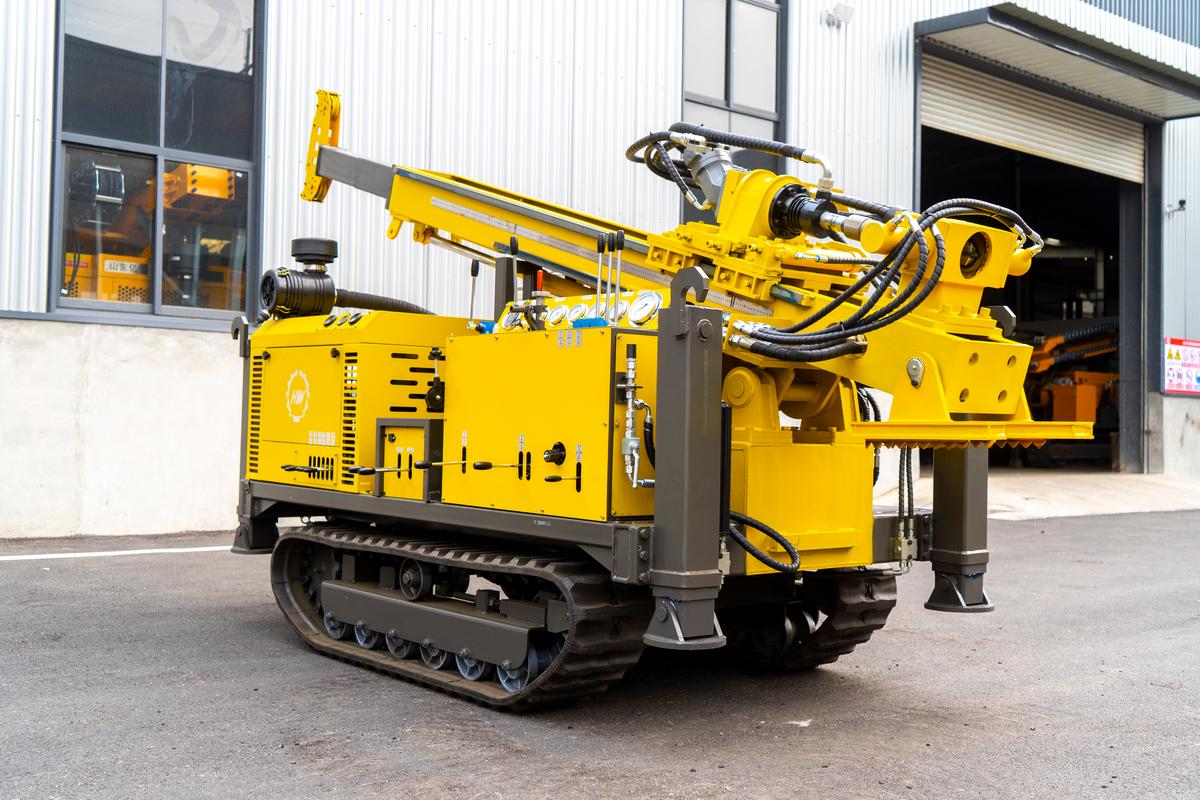

HW-200XL Fully Hydraulic Rope Coring Drilling Rig
Drilling depth:100-200-300(m)
Rated speed:2400(rpm)
Maximum torque:200-400(N·M)
Rated speed:2400(rpm)
Maximum torque:200-400(N·M)
1. It can be widely used in exploration, gold mine, iron ore, coal, lithium mine and other scenarios.
2. Easy to install, no need to lift the drill pipe during the rope coring process.
3. Thin-walled drilling tools with high coring efficiency.
Parameter:
| model | HW-YDX-200XL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 100-200-300(M) |

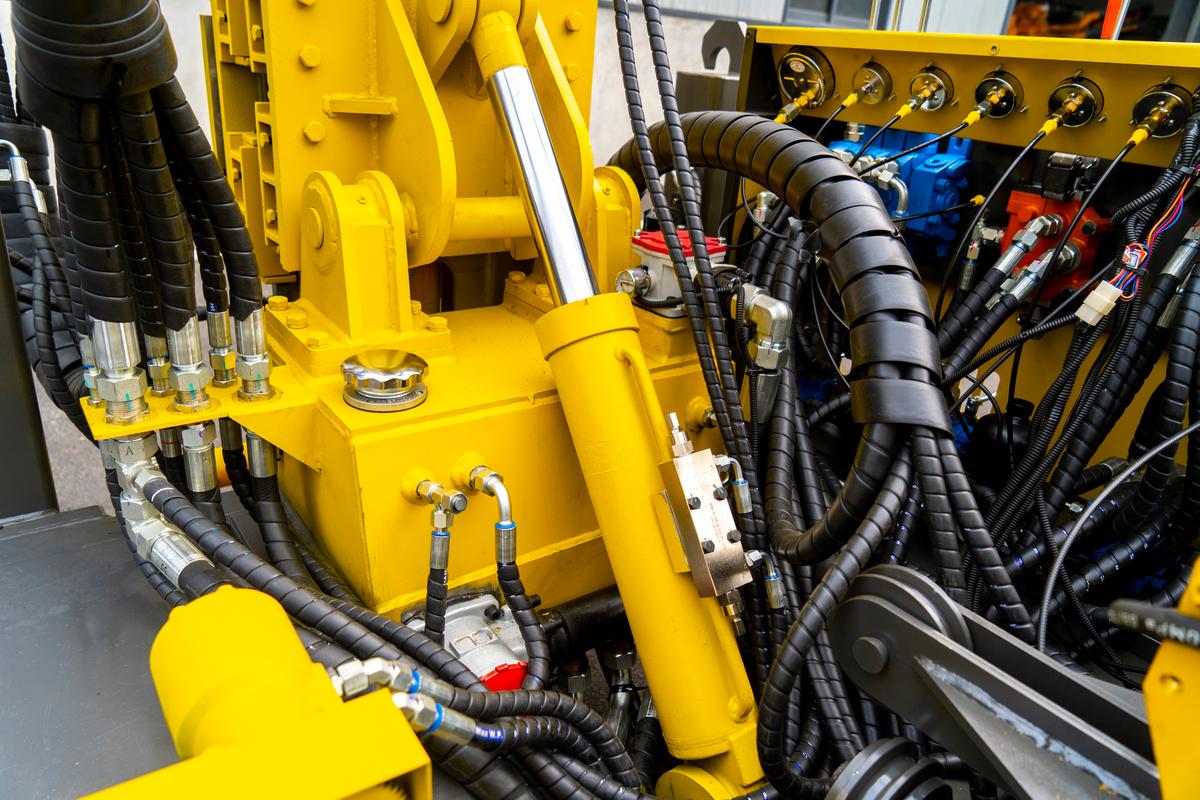

| Hydraulic system | |
| preset pressure | 21(MPA) |
| Rated flow | 78(L/min) |
| Cooling type | Water cooling |

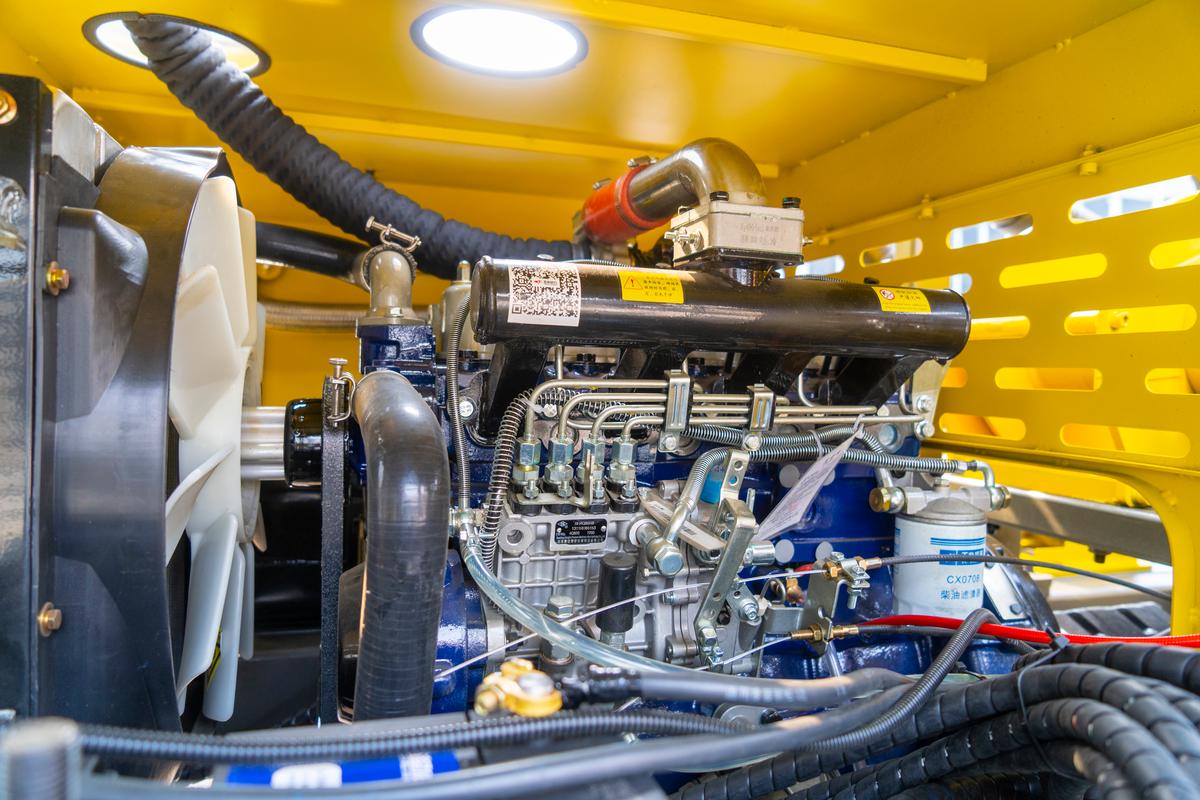

| Engine | |
| Brand | Yuchai |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 58KW |
| Power head | |
| Maximum torque | 200-400(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 1900(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 10(T) |
| Feeding force | 5(T) |
| Winch | |
| Lifting force | 500(KG) |
| Rotary speed | 100-240(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 200(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 2.5(KM/H) |
| Single machine climbing angle | 45(°) |
| hydraulic mud pump | |
| mud pump | Contains Bw-90 mud pump |
| flow | 30-90(L/min) |
| pressure | 4-7(MPA) |
| Shipping dimensions | 3000*1500*1800(MM) |
| Total Weight | 3.6(T) |
Due to product upgrading, some parameters may be changed, and the latest parameters can be obtained by submitting the form.
