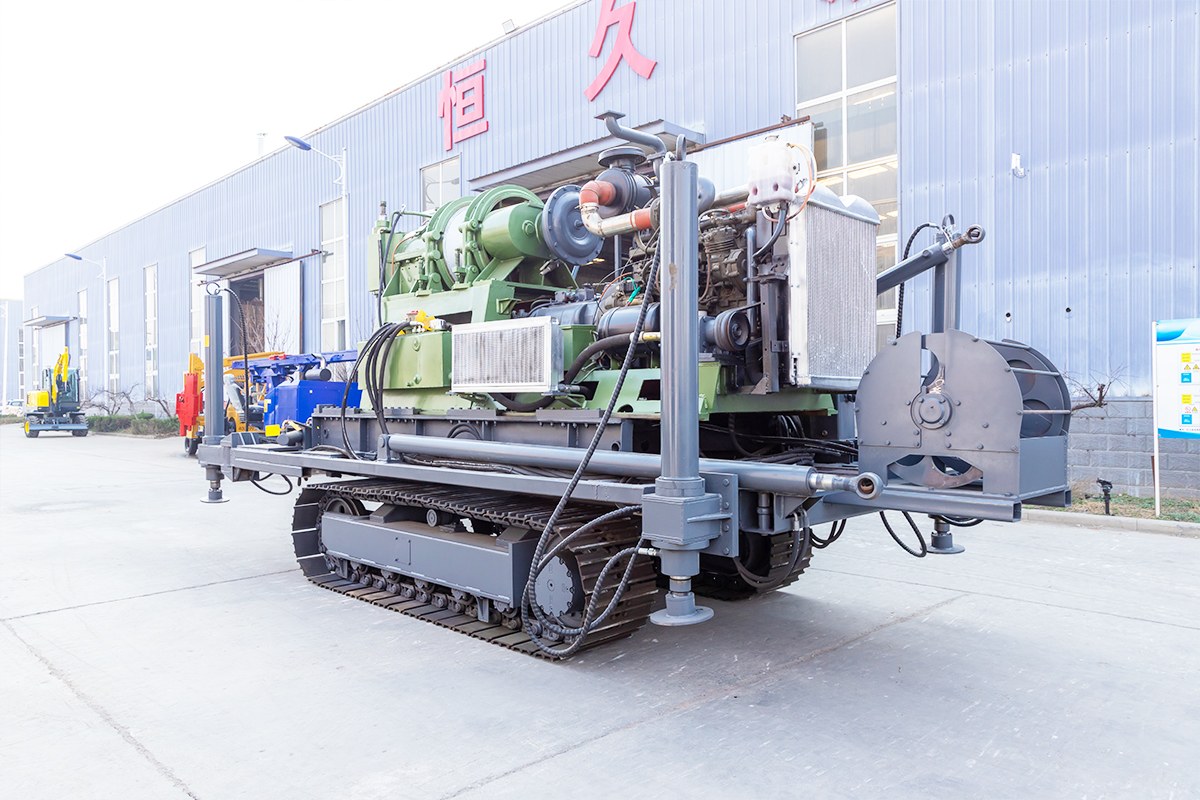

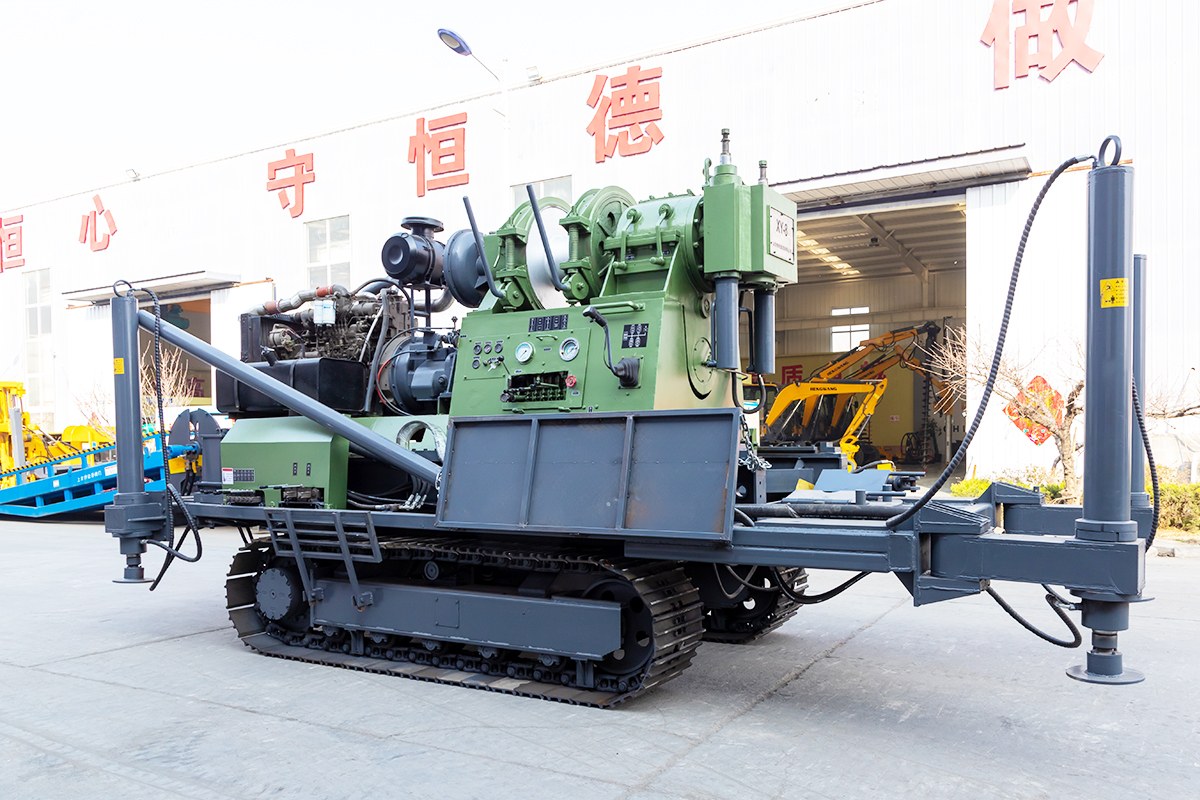

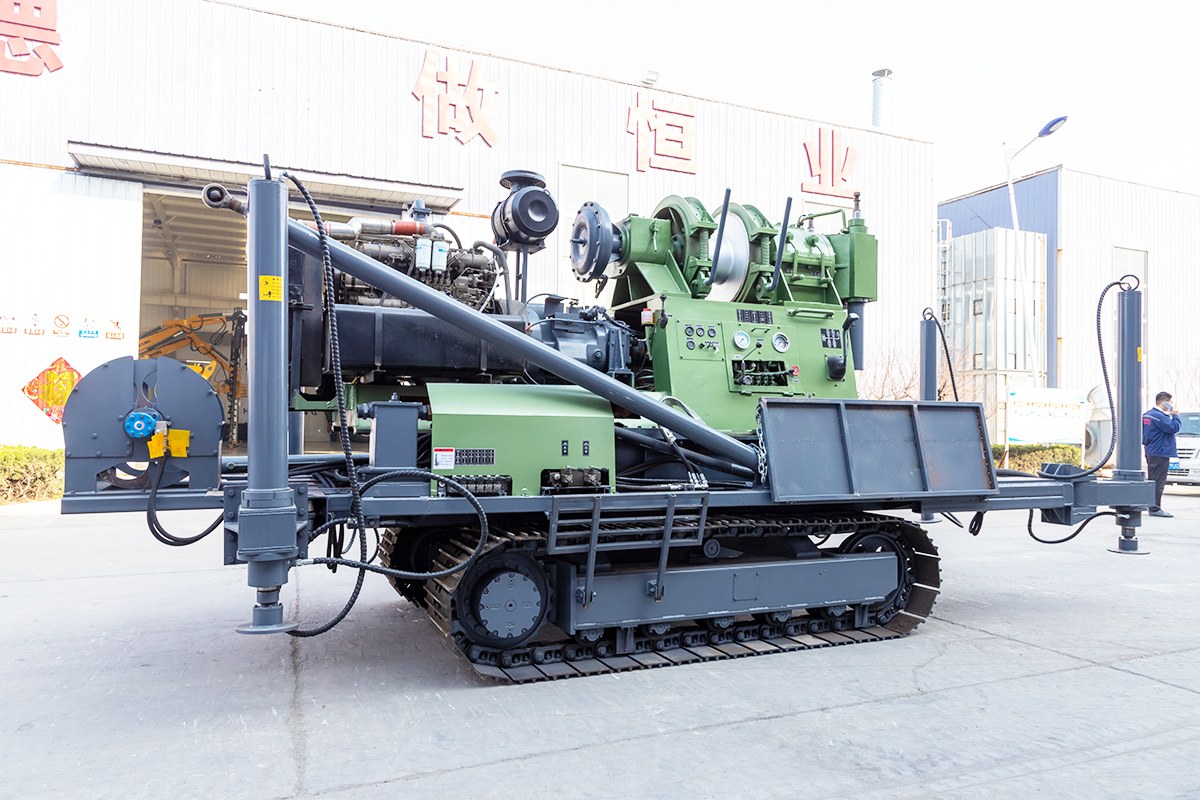

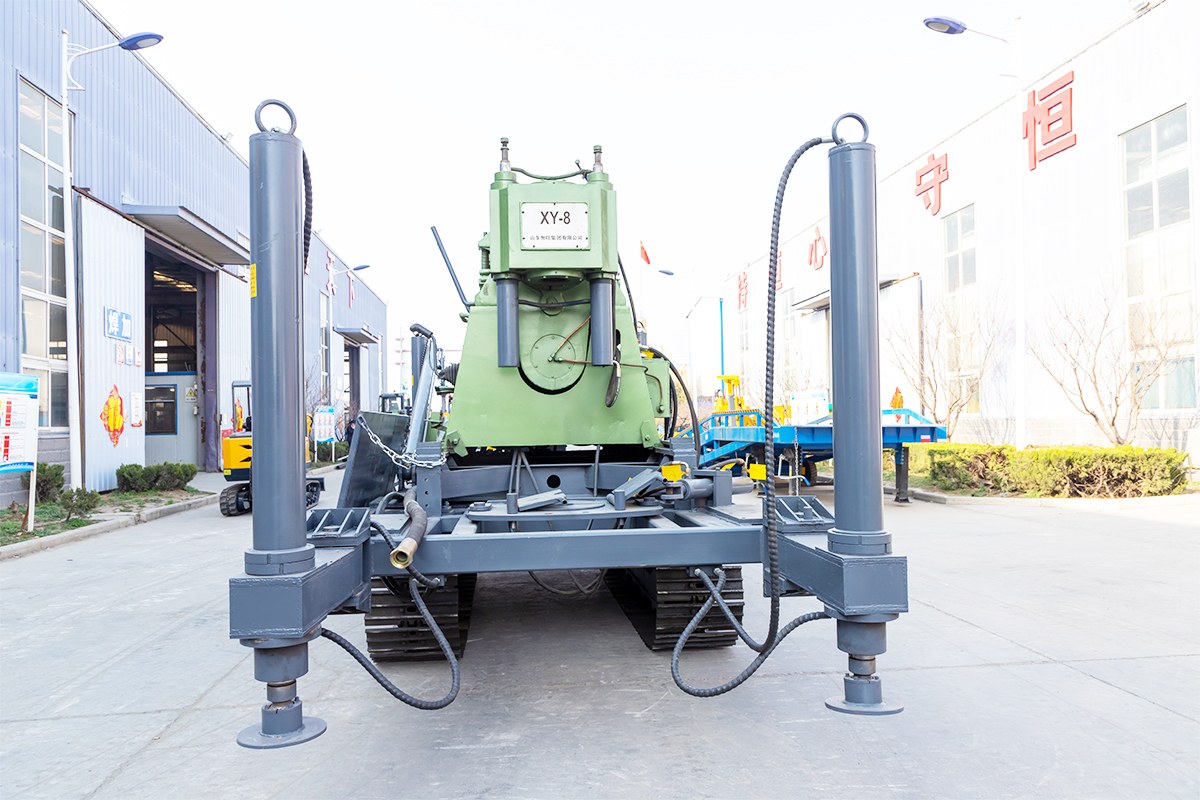

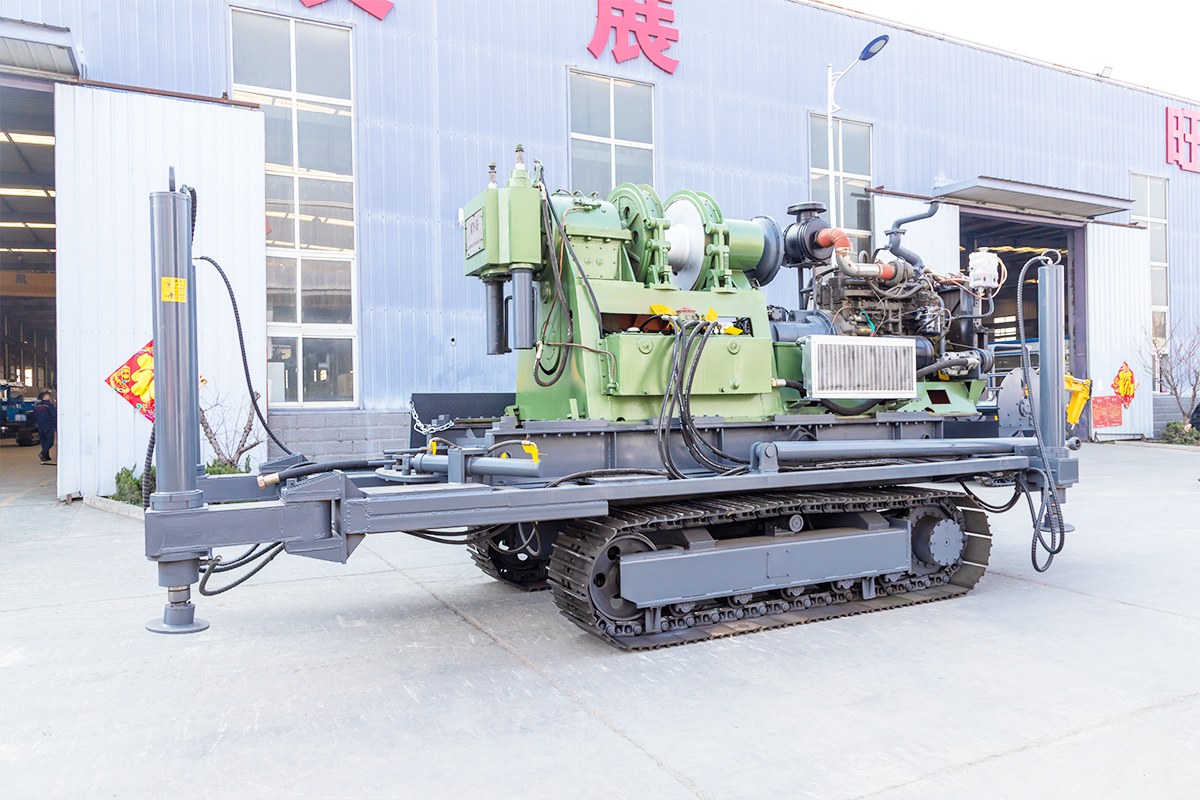

XY-8 Hydraulic Drilling Rig
Drill angle: 0-360°
Rated Power: 177kW
Product Gallery
Product Information
Hengwang Hydraulic Drilling Rig Series
Hengwang Group hydraulic drilling rig is a professional water well drilling equipment, mainly used for industrial drilling, low temperature drilling and agricultural drilling. Wireline coring rigs can be used for geological exploration as well as SPT soil testing.

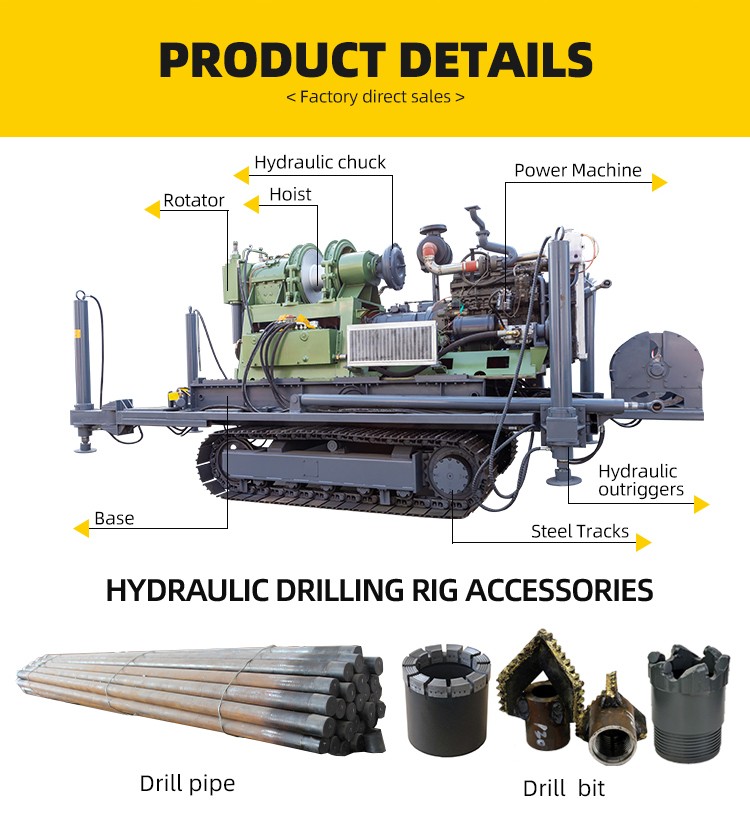

>>> Product Details <<<

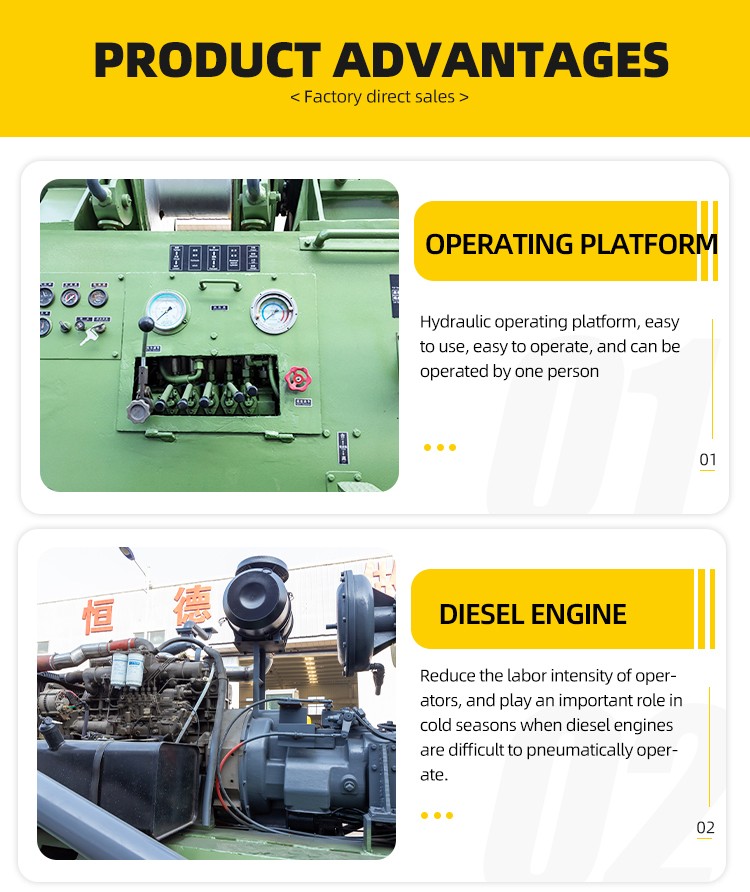

Main feature:
1. Adopt hydraulic automatic drilling mechanism to improve drilling efficiency and reduce labor intensity;
2. Hengwang drilling water machine is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;
3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.
XY-8 | |||||||
Drill rod category | Drill rod specifications (mm) | Drilling depth (M) | |||||
Drill pipe | Thickened within the drill pipe | φ50X5.5 Drill pipe | 3000 | ||||
φ60 X 6 Drill pipe | 2500 | ||||||
Cord coring drill pipe | φ71X5 Drill pipe | 2200 | |||||
φ89X5 Drill pipe | 2000 | ||||||
Dcdma drill pipe | Thickened within the drill pipe | BW Drill pipe | 3000 | ||||
NW Drill pipe | 2500 | ||||||
HW Drill pipe | 1800 | ||||||
Cord coring drill pipe | BQ Drill pipe(φ58) | 3000 | |||||
NQ Drill pipe(φ73) | 2500 | ||||||
HQ Drill pipe(φ93) | 1800 | ||||||
Remark:
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
