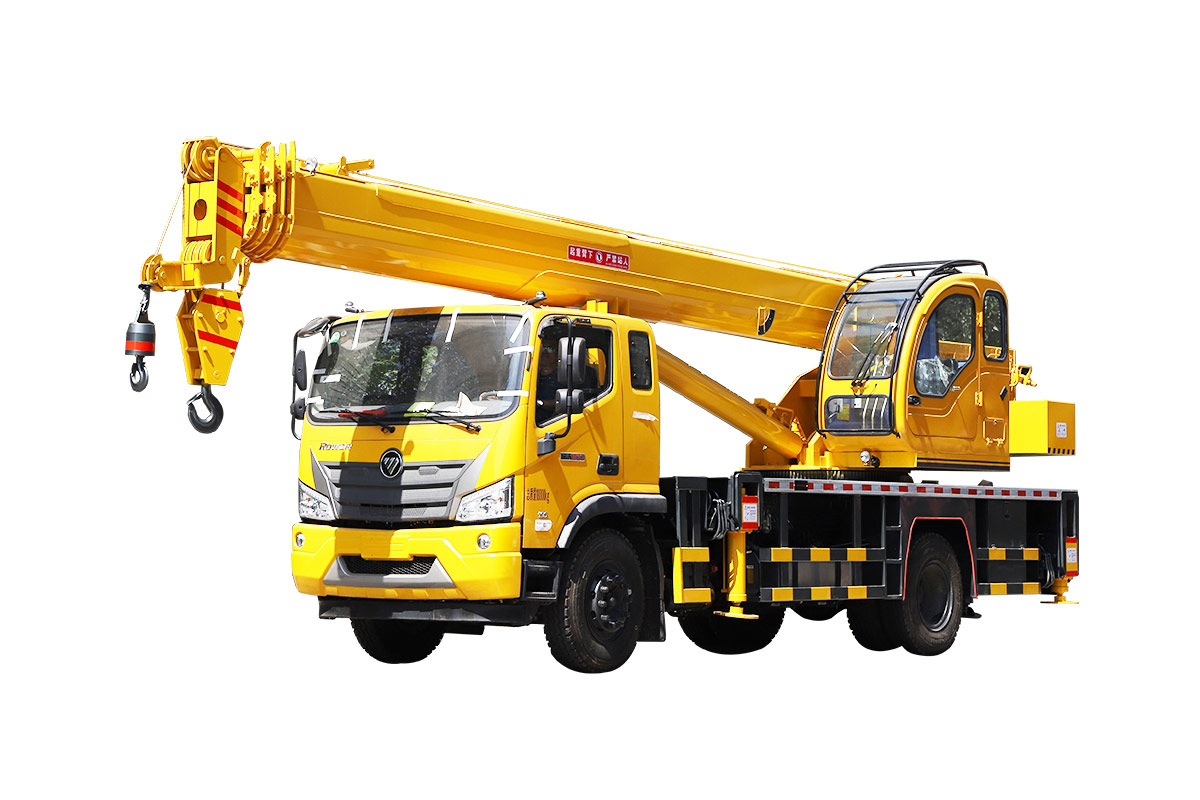

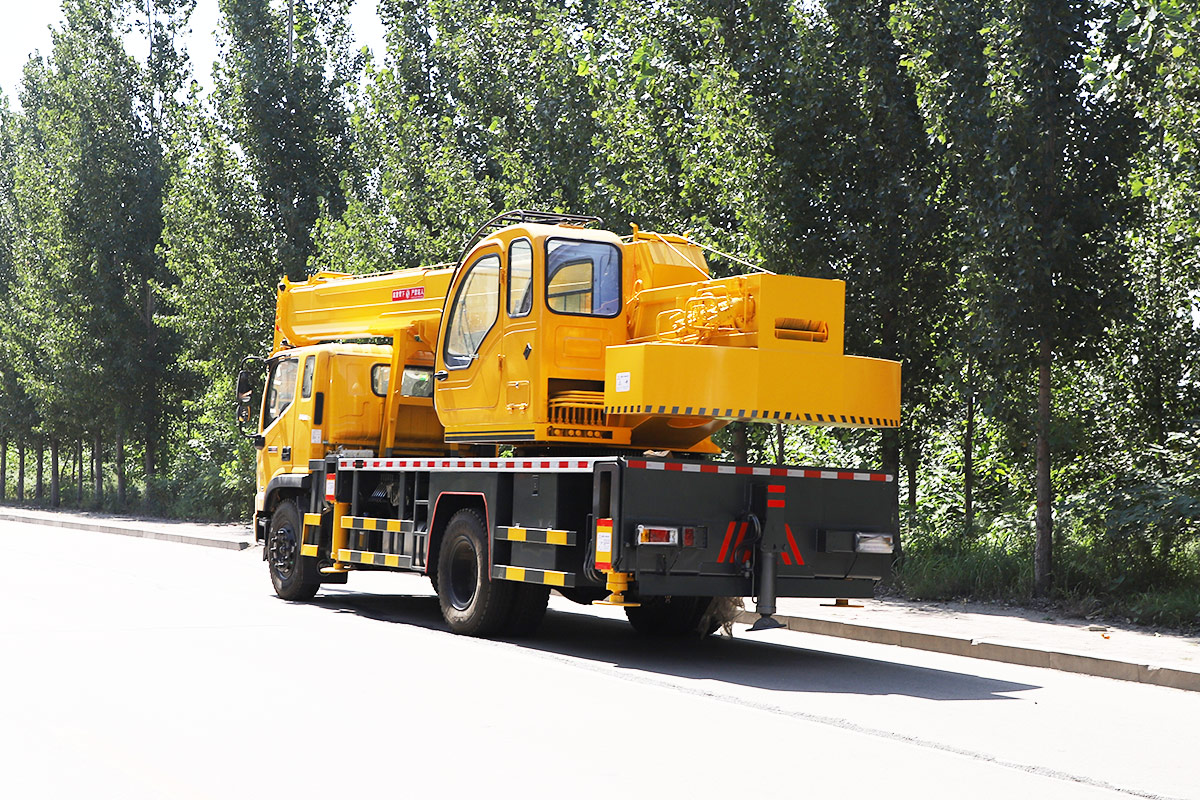

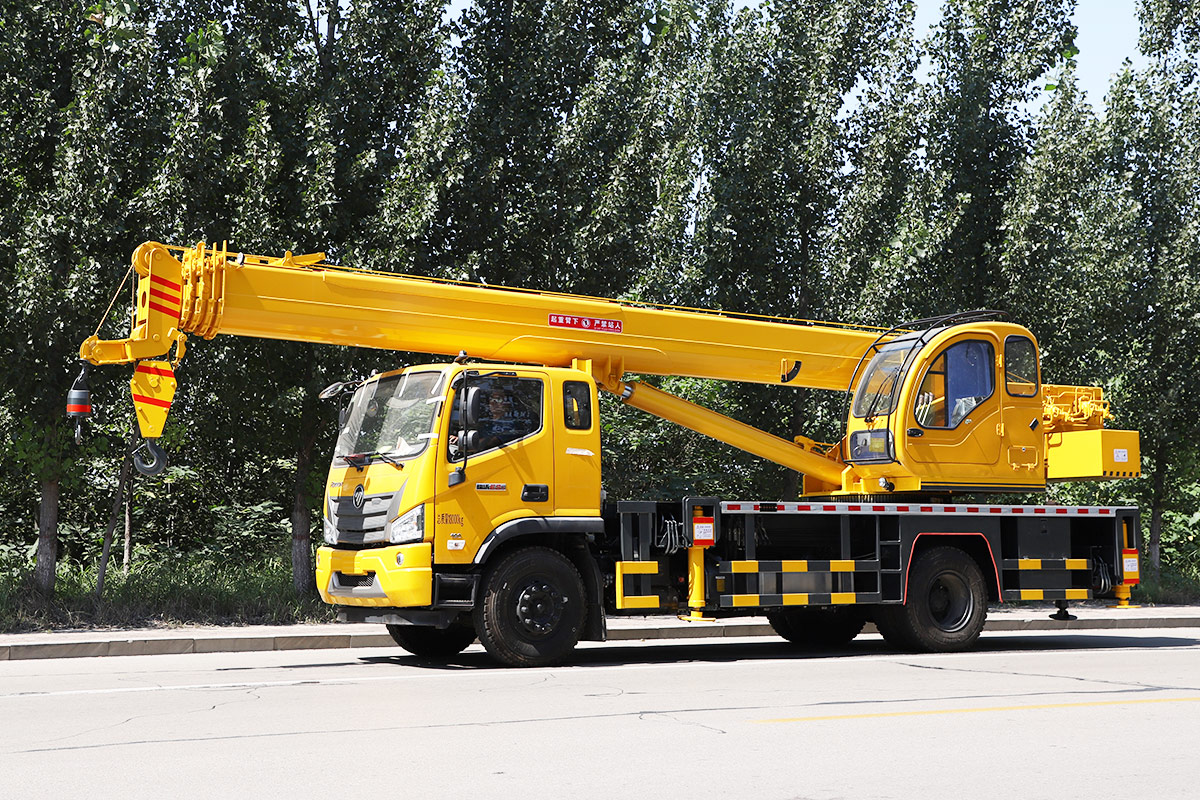

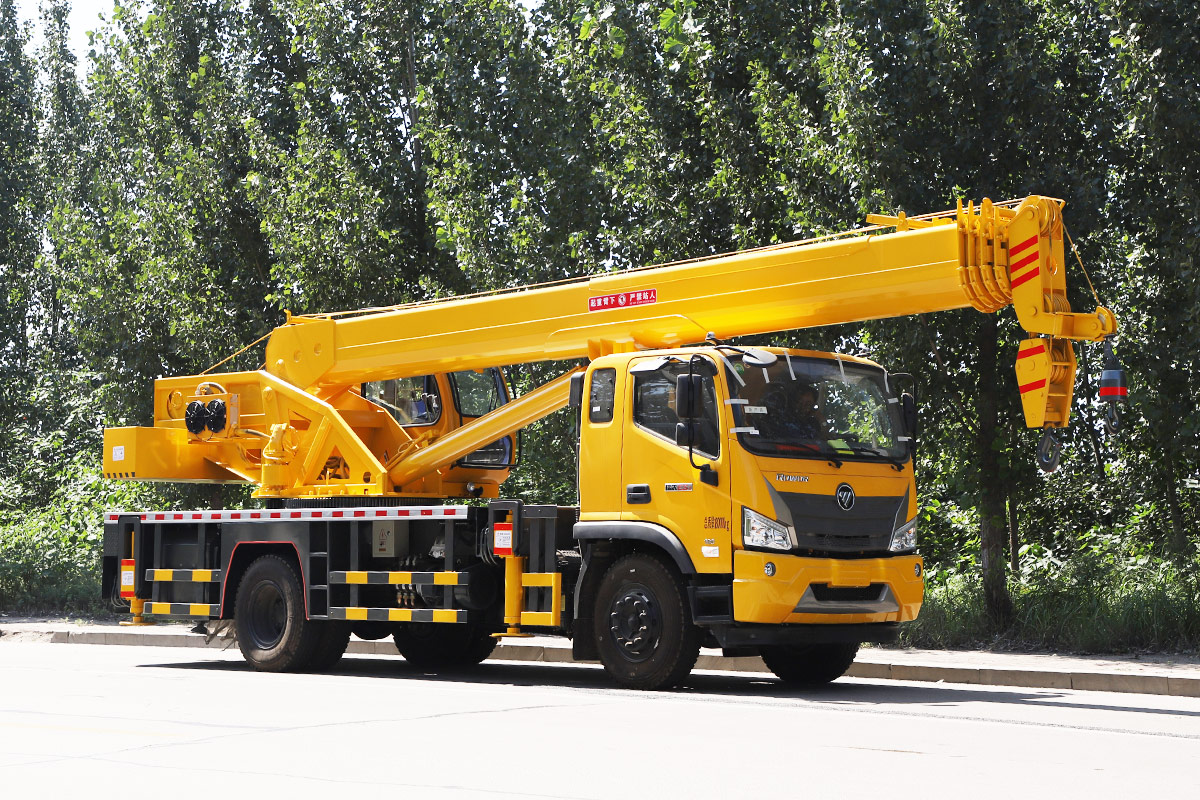

HWFT16T Truck Crane
Swing speed: 0-3rap
Engine model: Weichai
Power: 140kw190hp
Engine model: Weichai
Power: 140kw190hp
1. Standard environmental protection national 5 engine, intercooled supercharged, automatically air-cut brake, high and low speed driving.
2. The multi-way valve adopts the Lujiate large-flow double valve, double-in and double-out, double oil circuit, the hoisting system is faster and more powerful.
3. Large-diameter four-way central revolving body, equipped with a revolving brake valve to prevent slippage, with reliable buffer self-locking function.

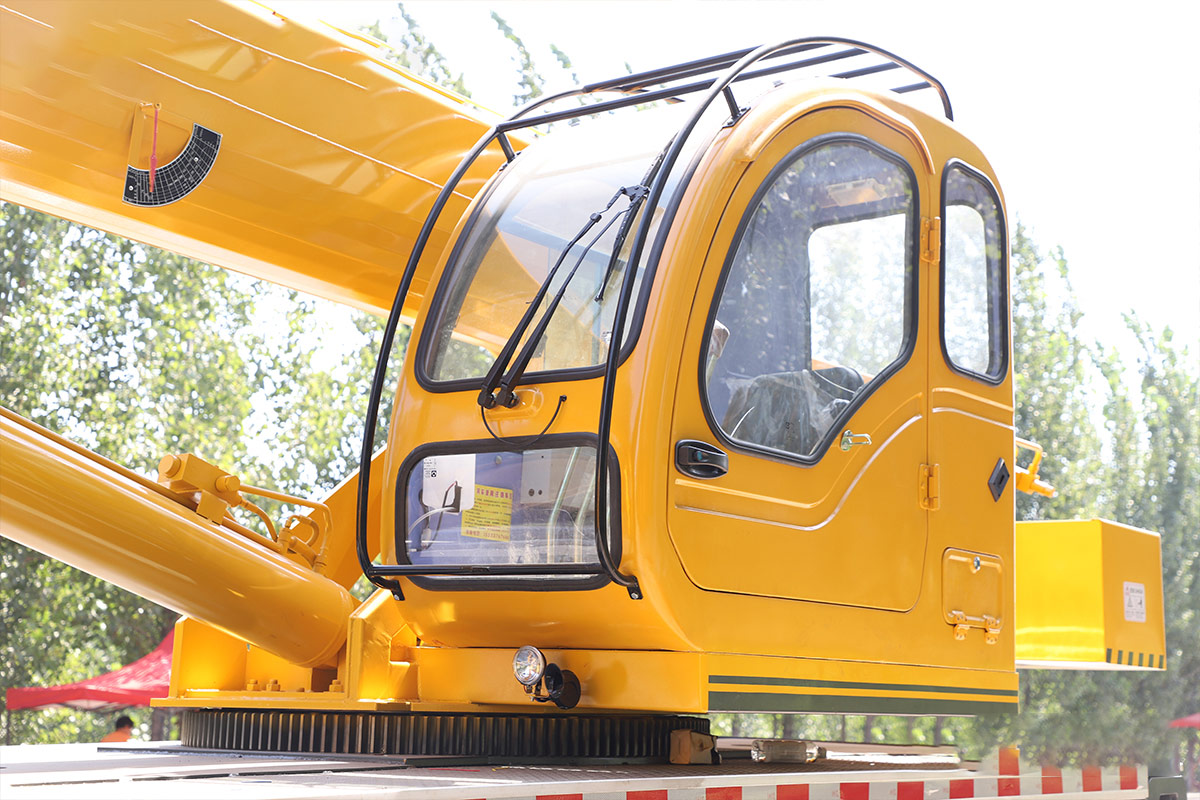

4. The slewing center is equipped with a touch-type electric disc, which can rotate 360 degrees infinitely.
| Model | HWFT16T |
| Chassis models | FUTON |
| Max. loading capacity | 16000kg |
| Crane jib U type | 8m*5 section |
| Max. lifting height | 33.9m |
| Outrigger span (mm) | 6400*5700 |
| Overall Dimensions | 10800*2370*3300 |
| Motor Power | 15kw (18.5kw) |
| Lifting speed | Three pumps combined |
| Swing speed | 0-3rap |
| Engine model | Weichai |
| Power | 140kw190hp |
Quote now for the best price.
