HWDFXC16T Truck Crane
Swing speed: 0-3rap
Engine model: Yuchai YCS04180-68
Power: 132kw 180hp
Engine model: Yuchai YCS04180-68
Power: 132kw 180hp
1.Large power, low fuel consumption, noise meets the standard requirements;
2. Luxury full cab and control room with modern streamlined style;
3. The walking plate is fully covered, which is easy to work and repair on the car;

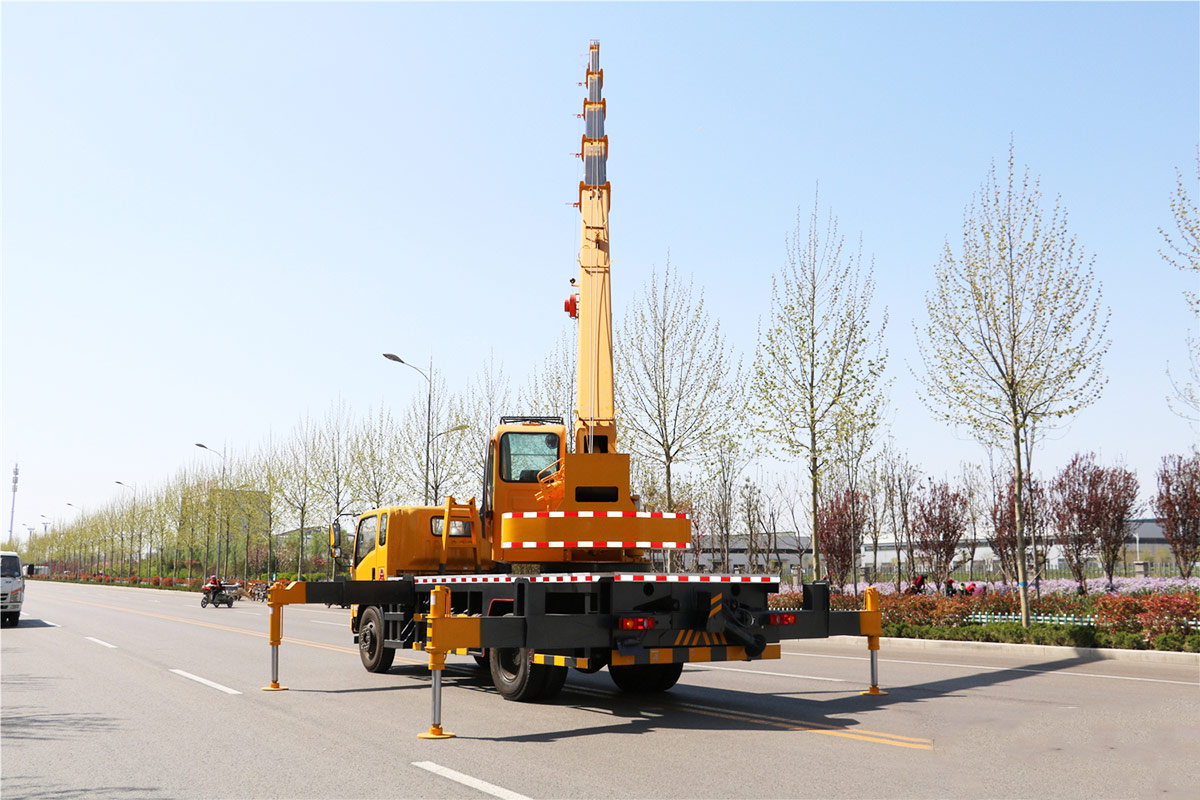

4. The outrigger system adopts double-sided operation, convenient and practical.
| Model | HWDFXC16T |
| Chassis models | Dngfeng4200 |
| Max. loading capacity | 16000kg |
| Crane jib U type | 8m*5 section |
| Max. lifting height | 35m |
| Motor Power | 15kw |
| Lifting speed | Three pumps combined |
| Swing speed | 0-3rap |
| Engine model | Yuchai YCS04180-68 |
| Power | 132kw 180hp |
| Tire | 10.00-R20 |
| Reducer model | Plunger planetary reducer |
| Steering machanism | Hydraulic Power Steering |
| Braking System | Air brake |
| Gearbox | Faust 8-speed gearbox |
| Weight | 18000kg |
| Cab | XCMG Cab |
| Emission Standards | China Ⅵ |
| Wheelbase | 4200 |
| Main hoisting mechanism | 16t Inclined shaft winch |
| Auxiliary hoisting mechanism | 12t Inclined shaft winch |
| Driving speed | 85km/h |
