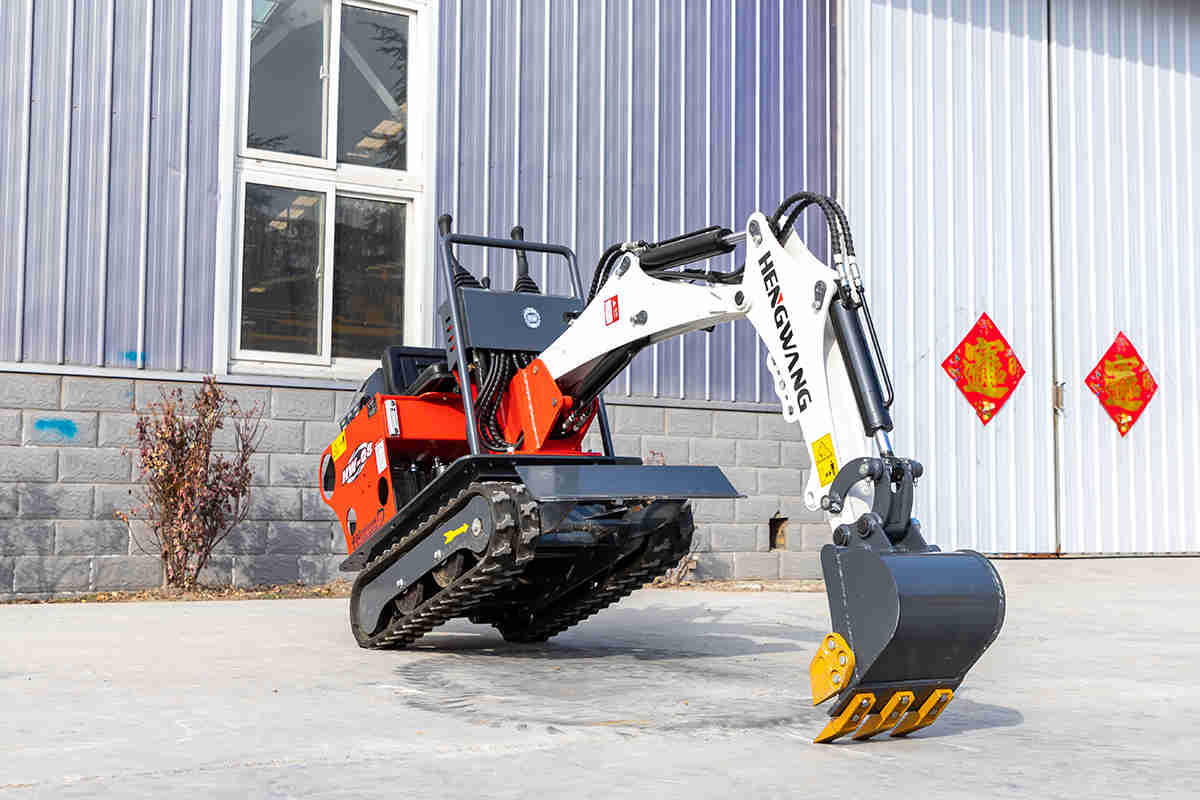

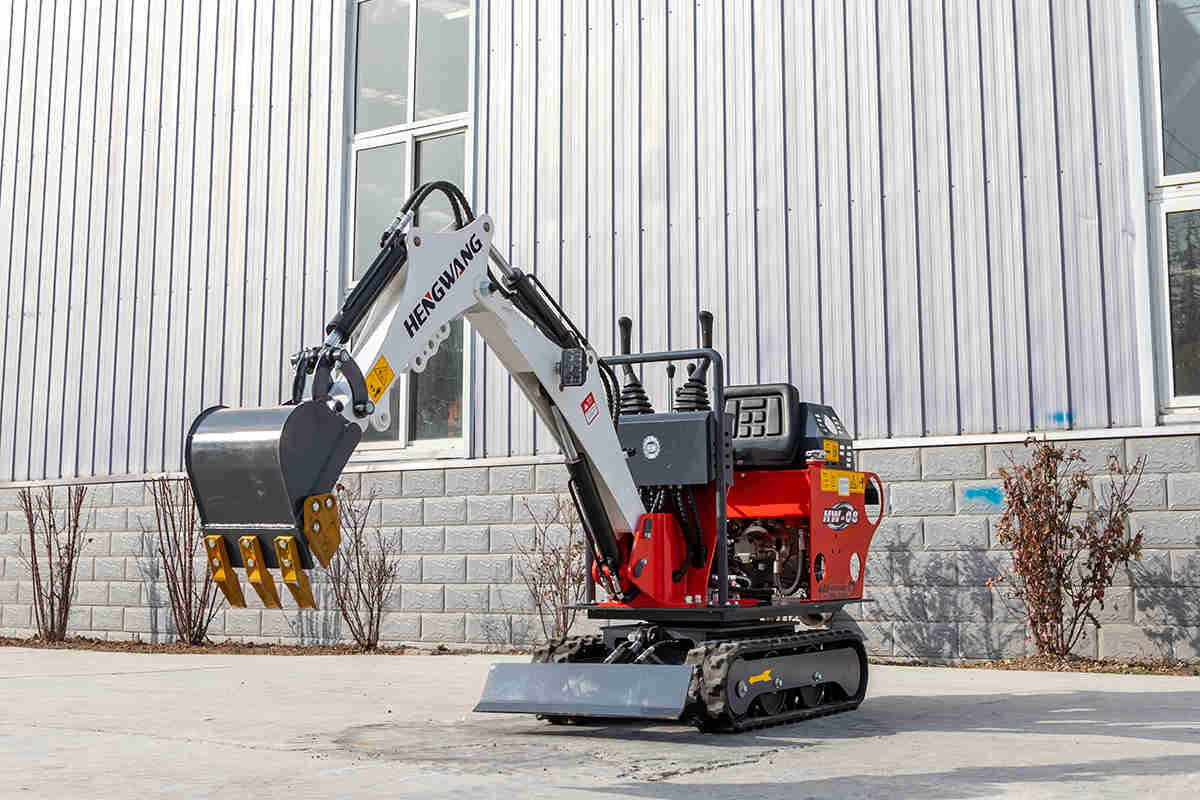

HW-08 Crawler Excavator
Operation weight: 800Kg
Bucket capacity: 0.02cbm
Rated power: 8.6 Kw
Bucket capacity: 0.02cbm
Rated power: 8.6 Kw
Parameters:
| Model | HW-08 | HW-08 Elevator version |
| Engine model | Changchai 192 | Changchai 192 |
| Power (KW) | 8.2 | 7.6 |
| Backet capacity (m³) | 0.02 | 0.02 |
| Dimensions (LxWxH) | 2480*700*1700 | 2480*700*1700 |
| Operating weight(kg) | 680 | 680 |
| Walk speed(km/h) | 2 | 2 |
| Maximum climbing angle(°) | 30 | 30 |
Key Features:
1. Adjustable Track Width:
With a retractable track width of 72cm, the HW-08 can fit into extremely tight spaces, providing access where other machines cannot reach.
2. Zero Tail Swing:
The 'Zero Tail Swing' function ensures complete rotation without protruding from the contour of the machine, offering maximum flexibility of movement and protecting against accidental contact with surrounding property.
3. Access to Complicated Sites:
Designed to overcome obstacles and access difficult sites, the HW-08 becomes the ideal option for projects in urban environments or areas with space restrictions.
