HQZ-500L Pneumatic Drill Rig
Drilling depth: 500m
Drilling diameter: 130-350mm
Main motor power: 115Kw
Drilling diameter: 130-350mm
Main motor power: 115Kw

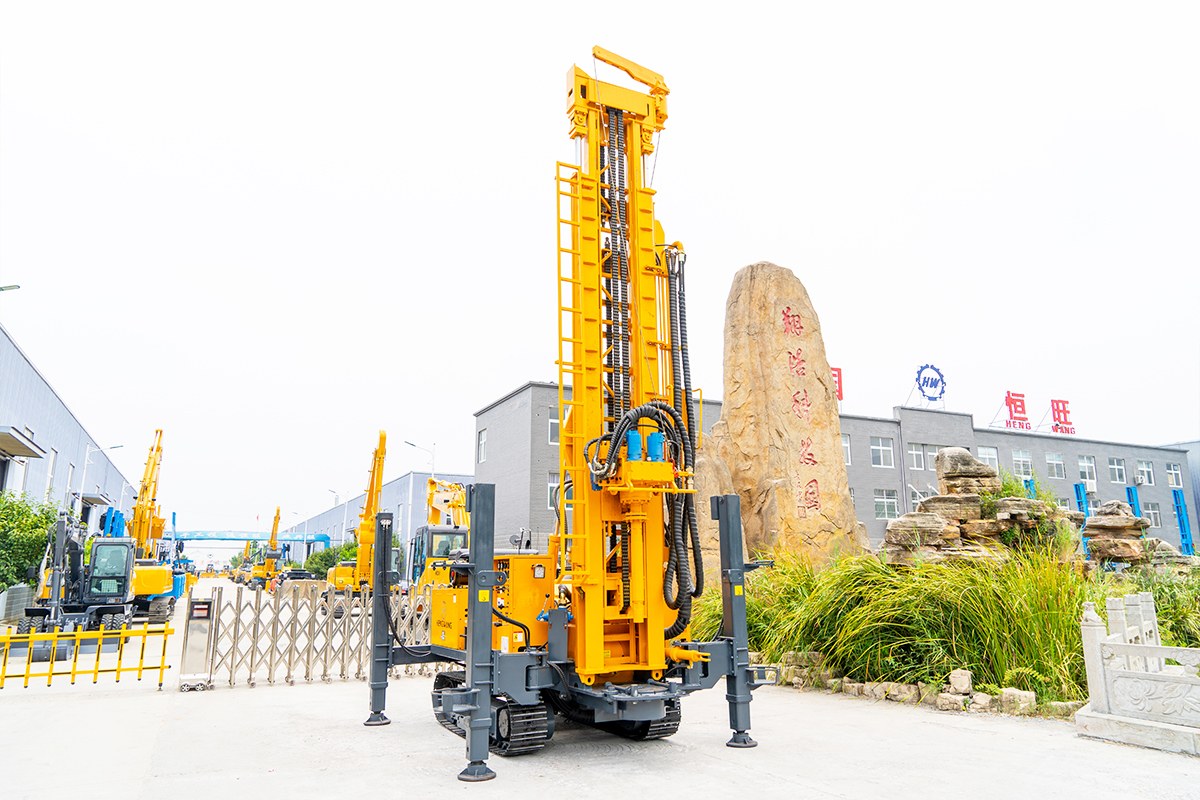

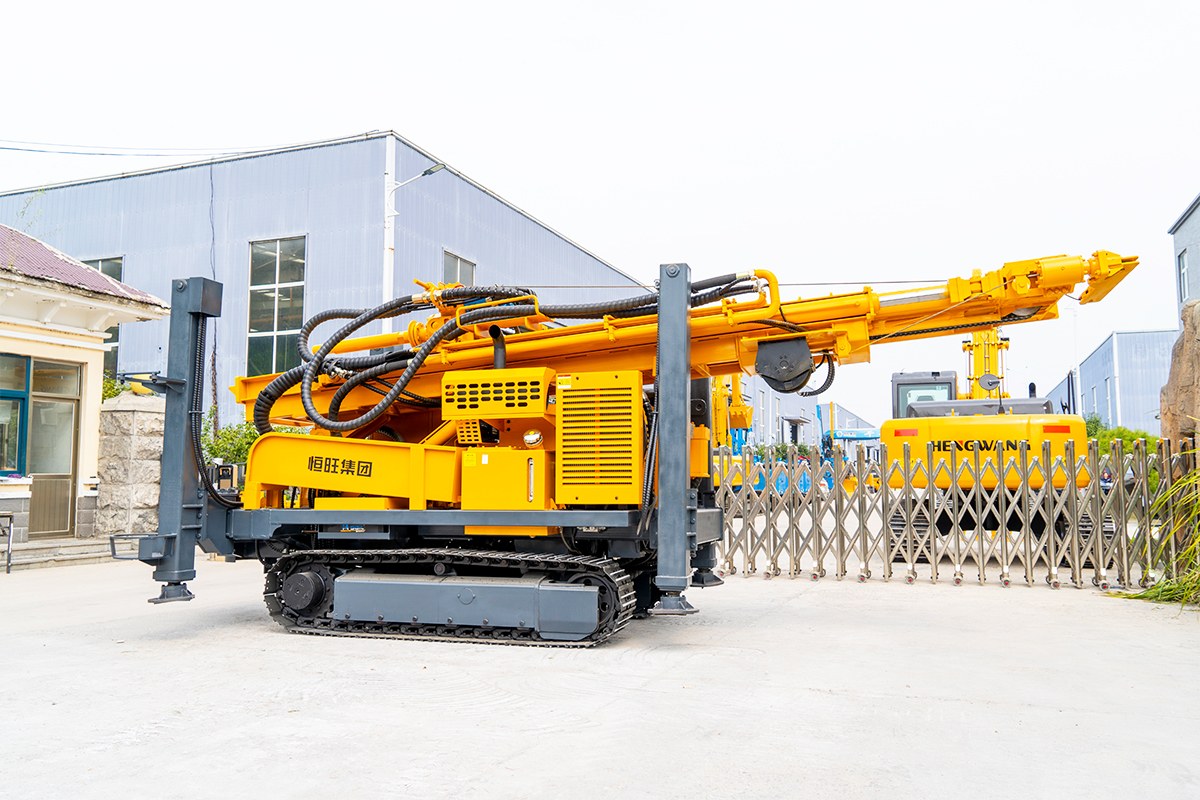

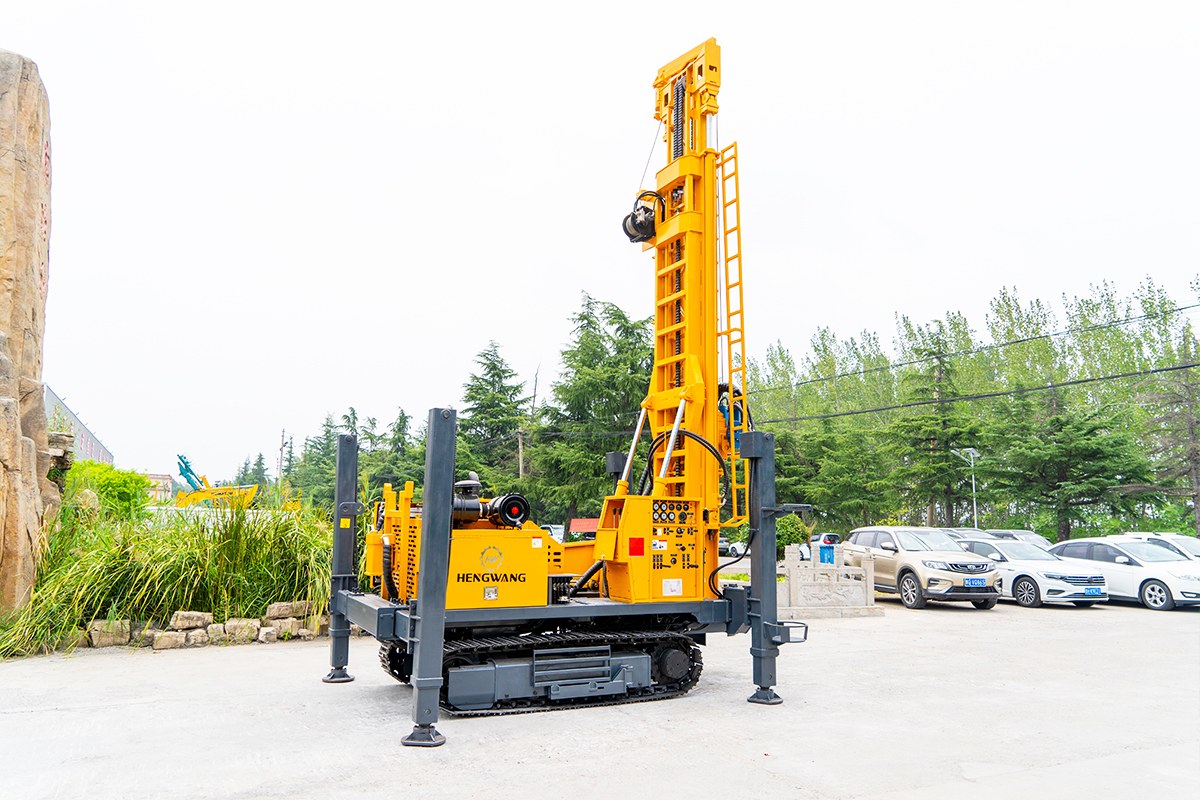

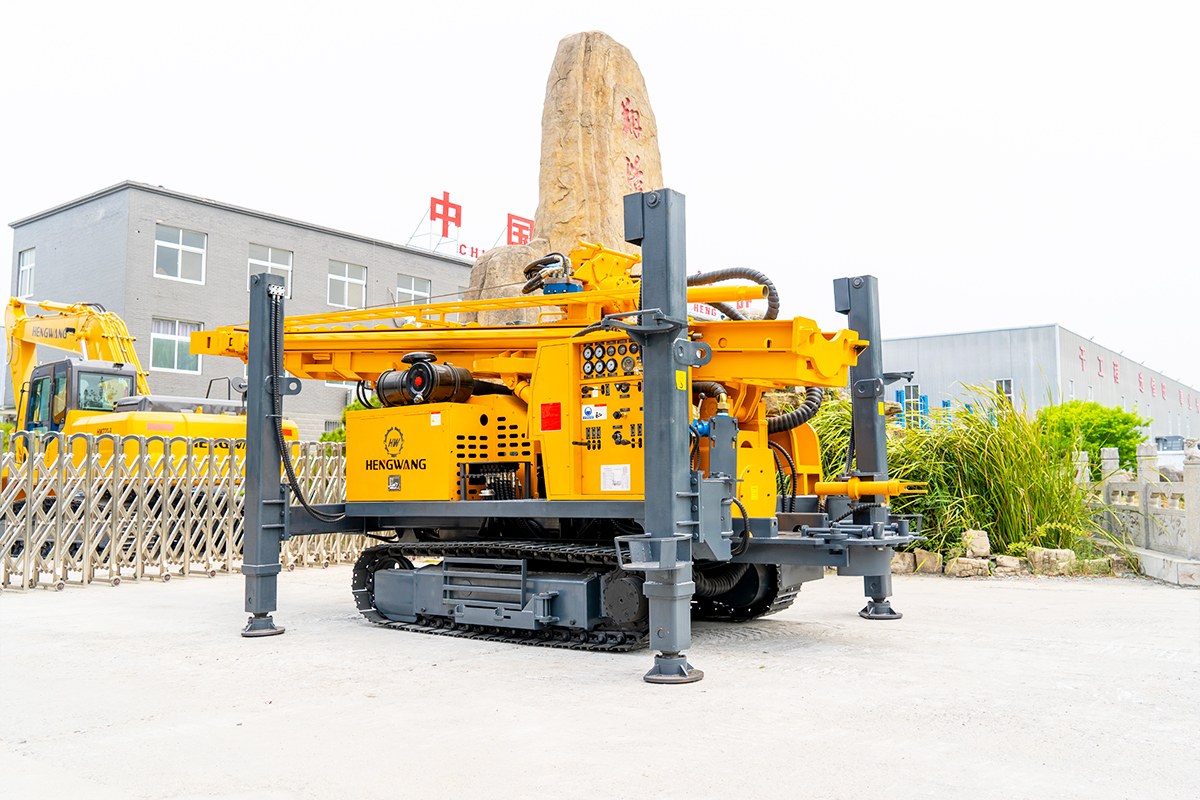

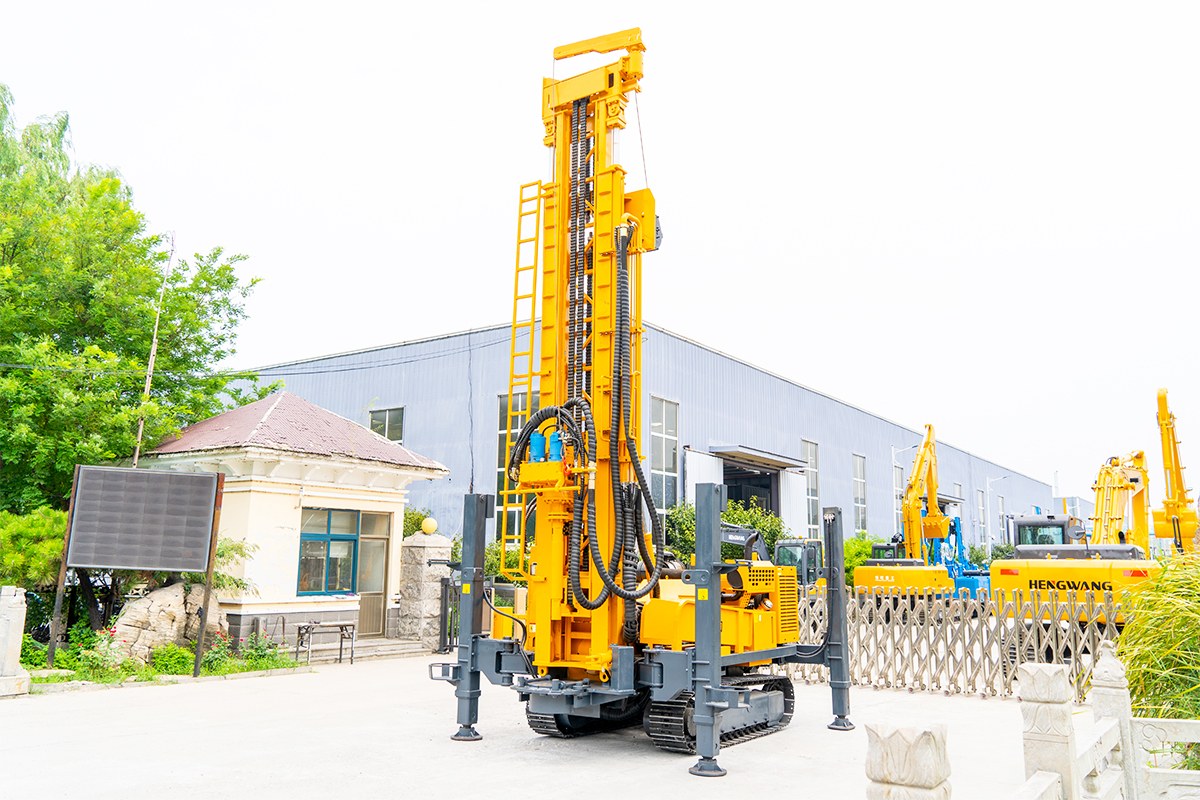

Product Gallery
Product Information

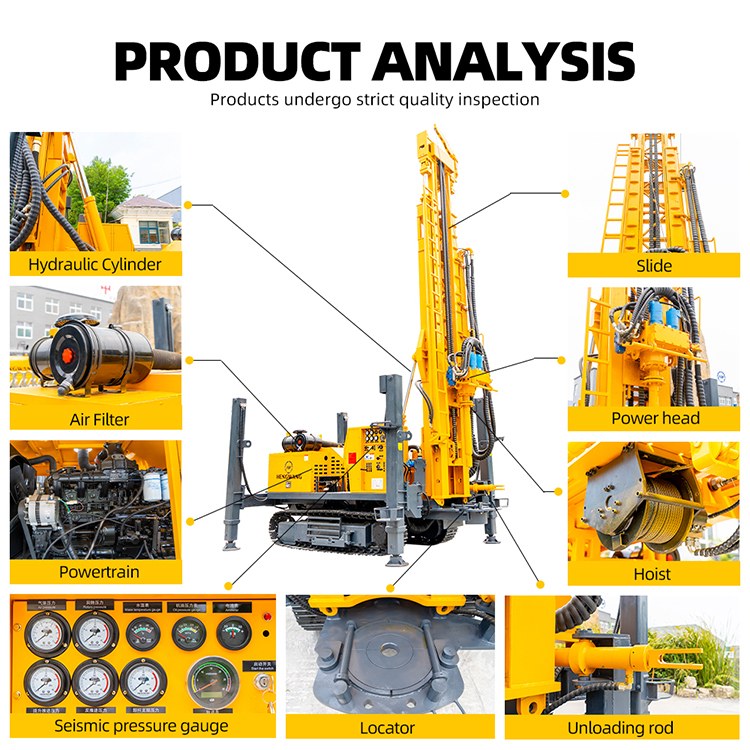

Main feature:
1.Pneumatic water well drilling rig with fast drilling speed and low fuel consumption per unit.
2.Crawler type chassis for improved off-road performance.
HQZ pneumatic water well drilling rig is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.
Submit the form to get the latest parameters and quotations.
model | HQZ-500L | |
| tower | 6 | m |
| Chassis | Steel track | / |
| Drilling diameter | 130-350 | mm |
| Drilling depth | 500 | m |
| One-time advancement length | 6.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 118 | kw |
| working pressure | 1.7-3.5 | mpa |
| Air consumption | 17-42 | m³/min |
| Drill pipe diameter | 102/108/114 | mm |
| Drill pipe length | 3.0/6.0 | m |
| Lifting power | 26 | T |
| Swing speed | 40-100 | rpm |
| Rotating torque | 8000-10000 | N.m |
| Dimensions | 6000*2200*2950 | mm |
| weight | 11.5 | T |
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
Submit the form to get the latest parameters and quotations.
