HW-B30 Backpack Core Drilling Rig
Drill Diameter: 40-108mm
Drill Depth: 30m
Engine Power: 7.5hp
Drill Depth: 30m
Engine Power: 7.5hp

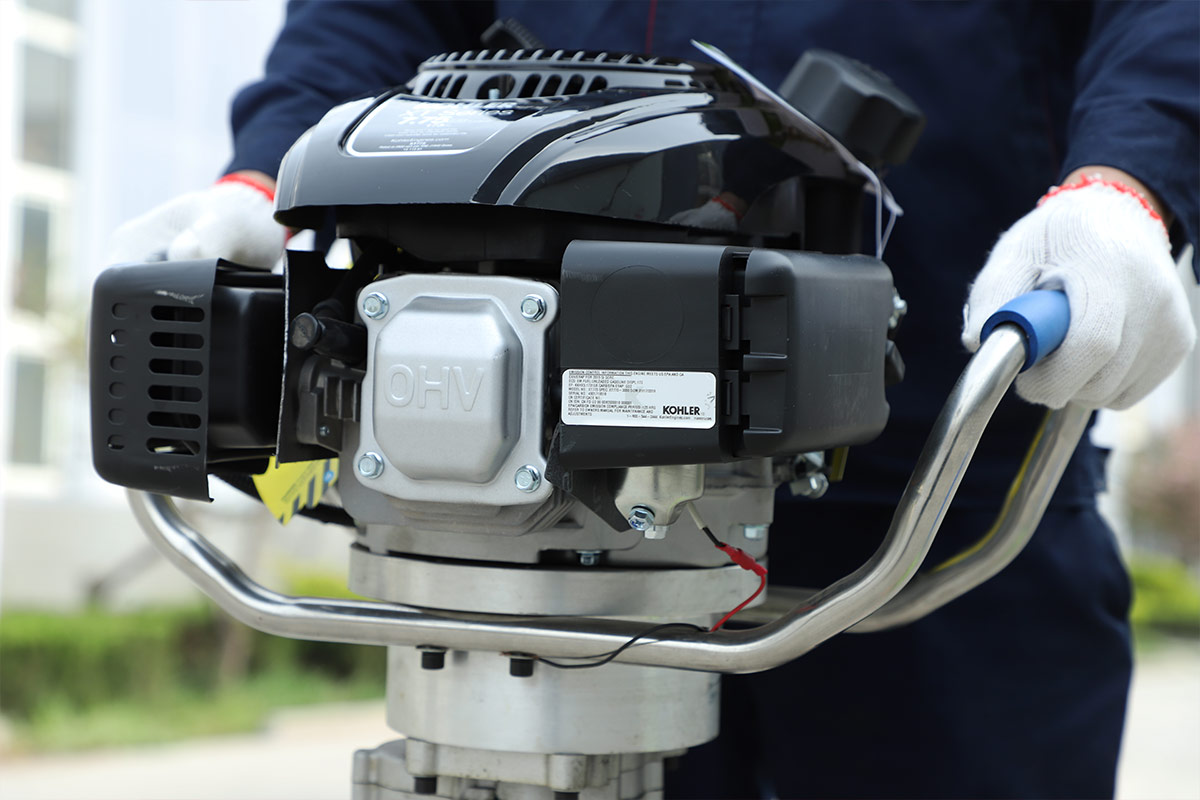

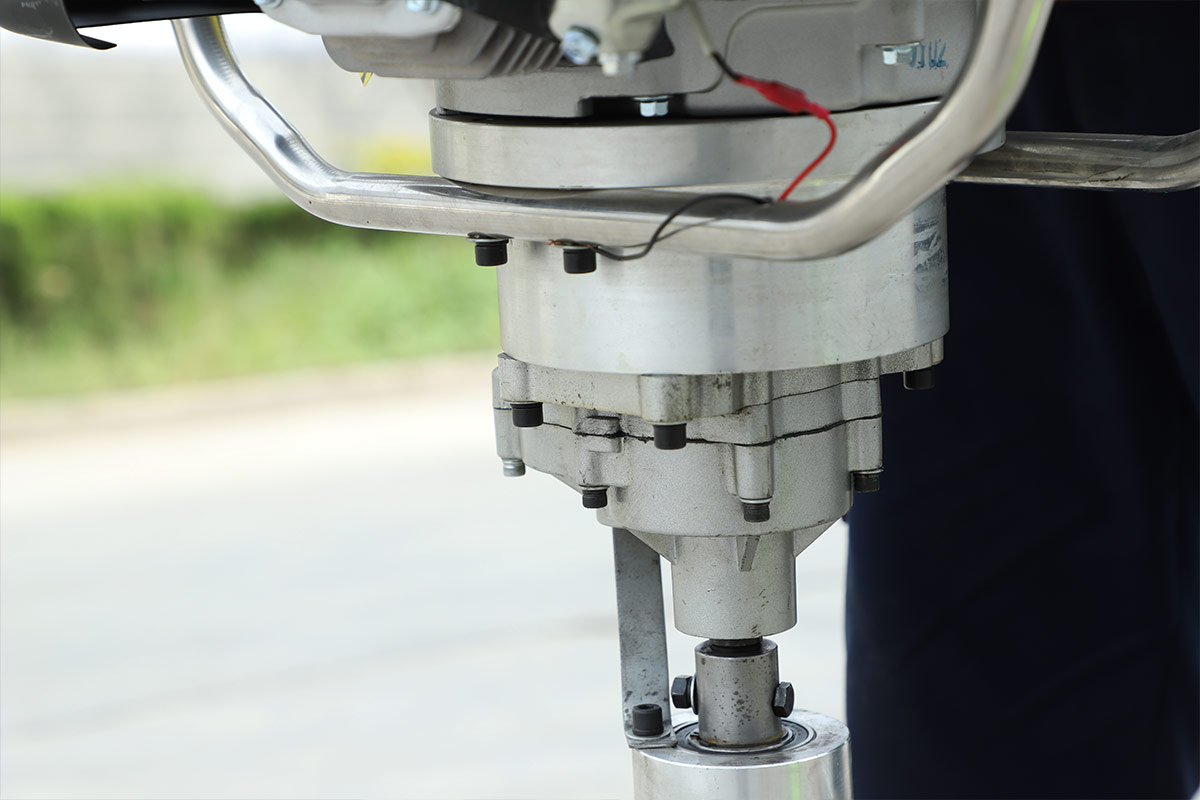

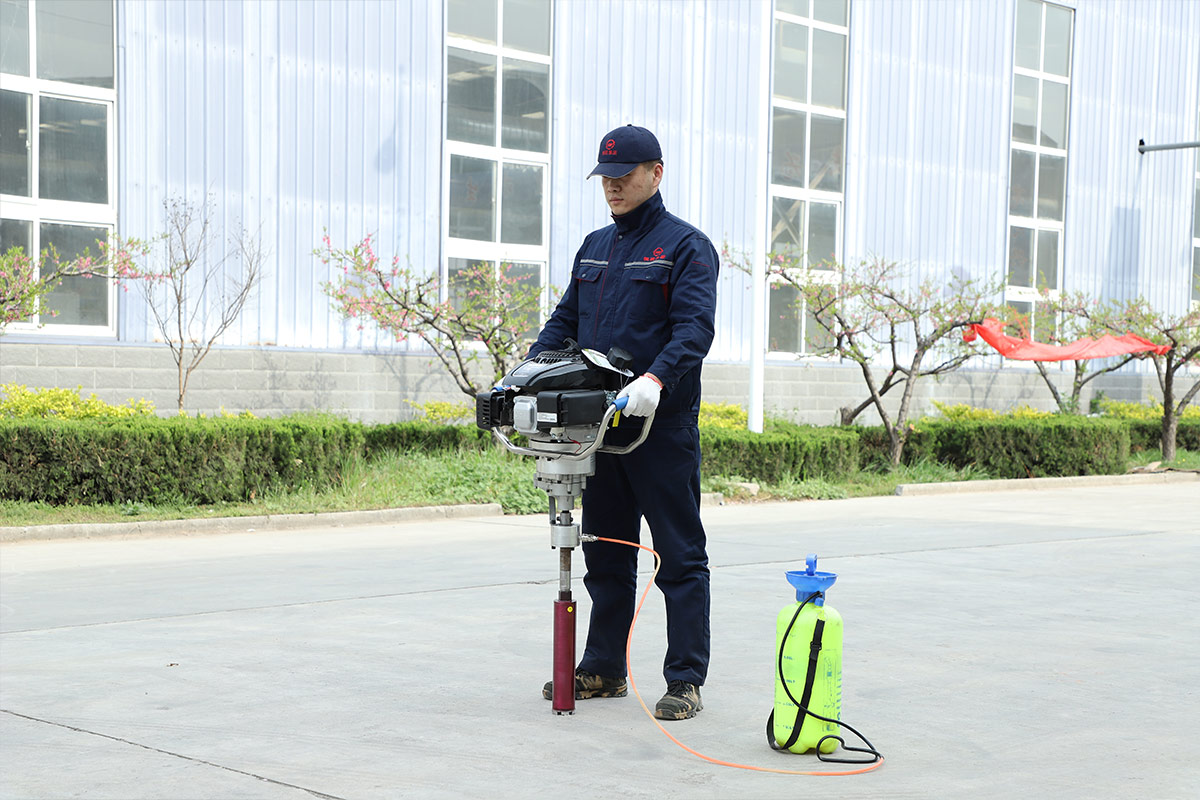

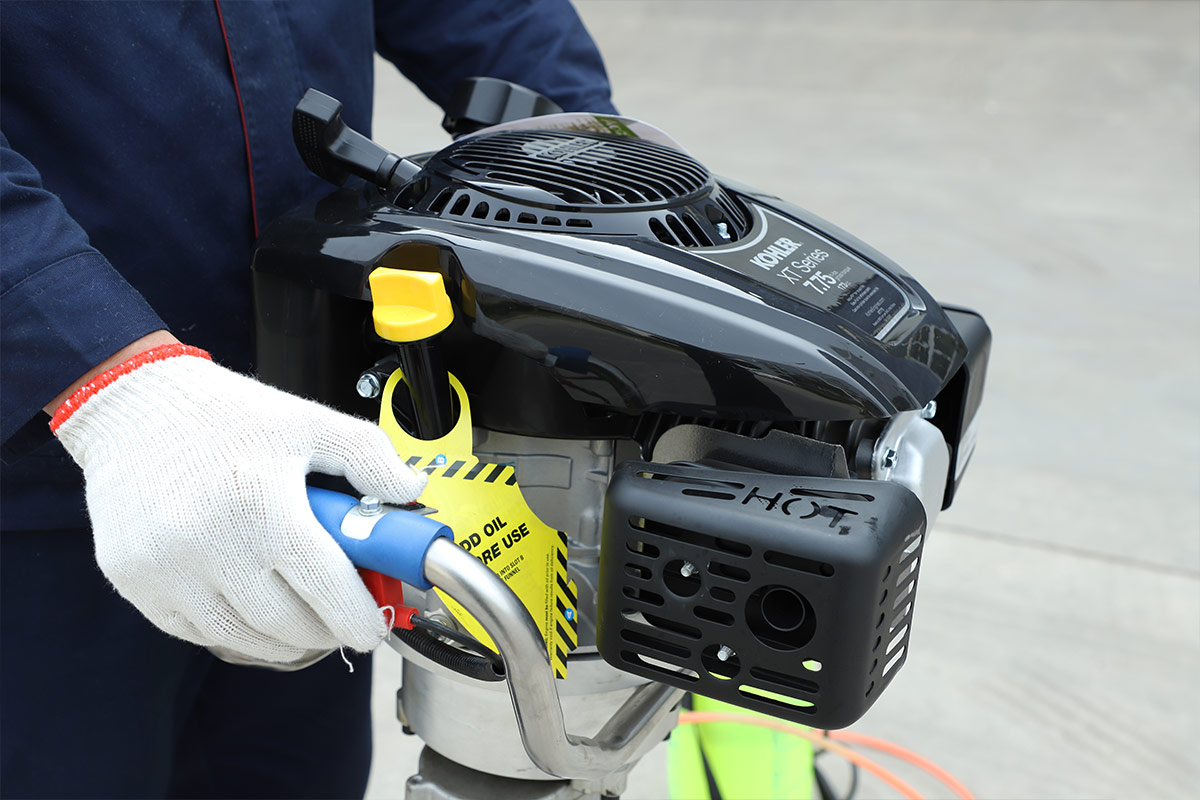

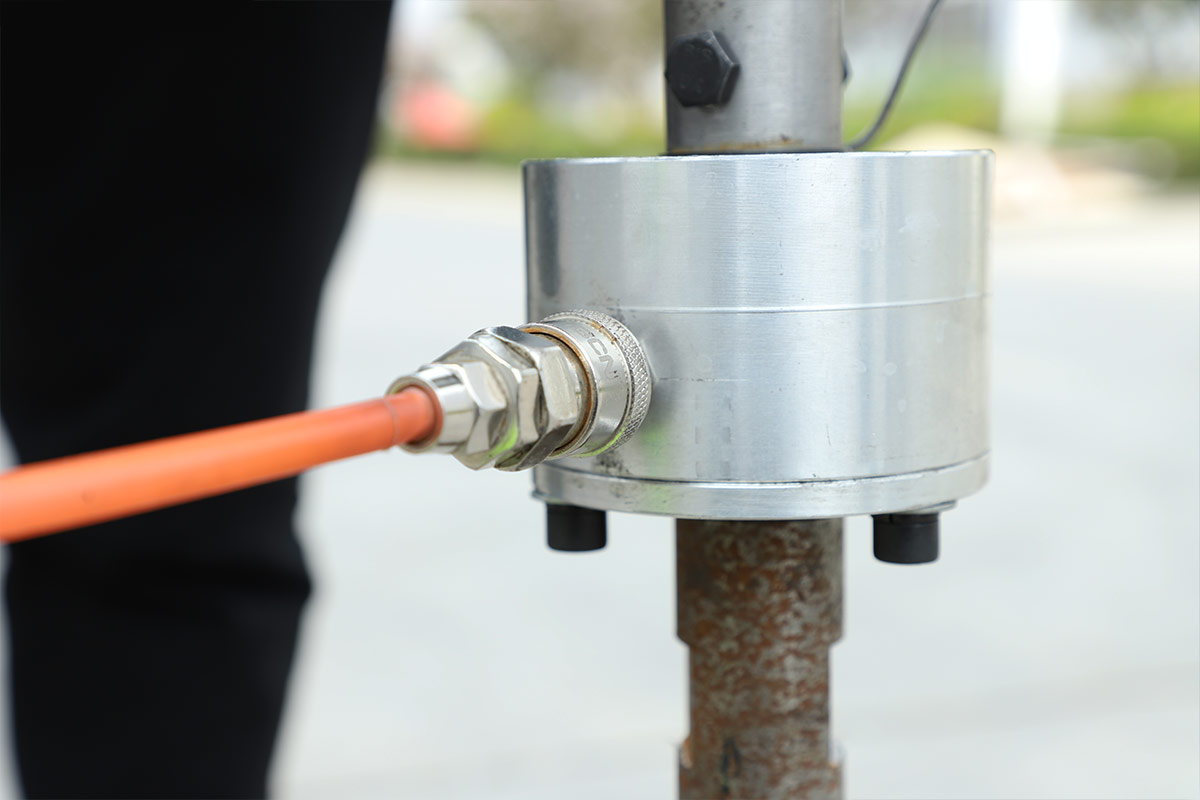

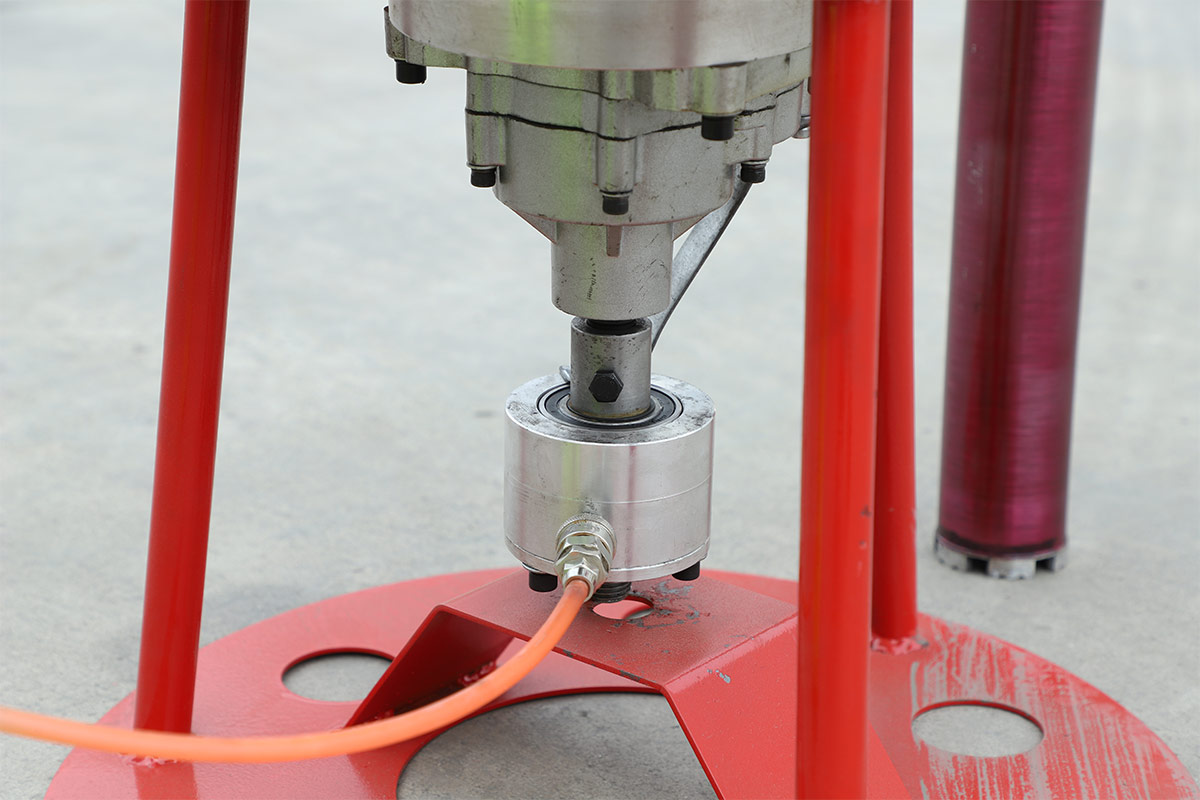

HW-B30 is a kind of small portable sampling drilling equipment which is mainly suitable for mountain, transportation and energy. The machine can replace the traditional manual excavation, tank probe, take samples and so on.
It not only more efficient, but also reduces vegetation damage and protects the environment.
Model | HW-B30 |
Borehole diameter (mm) | φ40—φ108mm |
Drill hole depth (m) | 30m (diameter 40mm) |
Application of rock types | Soil, medium hard (10grade) |
Rotation speed | 2200r/min |
Water consumption (L/H) | 14.4L/H |
Power (cc) | 173cc |
Rod rotation speed (r/min) | 0-800 |
Drill pipe | |
(1) Drill pipe diameter (mm) | φ32 |
(2) Drill pipe length (mm) | 720mm (including connector) |
(3) Drill pipe material | Titanium alloys |
(4) Drill pipe weight (kg) | 1.1kg |
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
Submit the form to get the latest parameters and quotations.
